DLE60 STARTER-GENERATOR KIT

Starter-Generator kits tailored specifically for the DLE60.Has an excellent start-up control algorithm without Hall elements.Adopt split design to improve heat dissipation efficiency and reduce failure rate

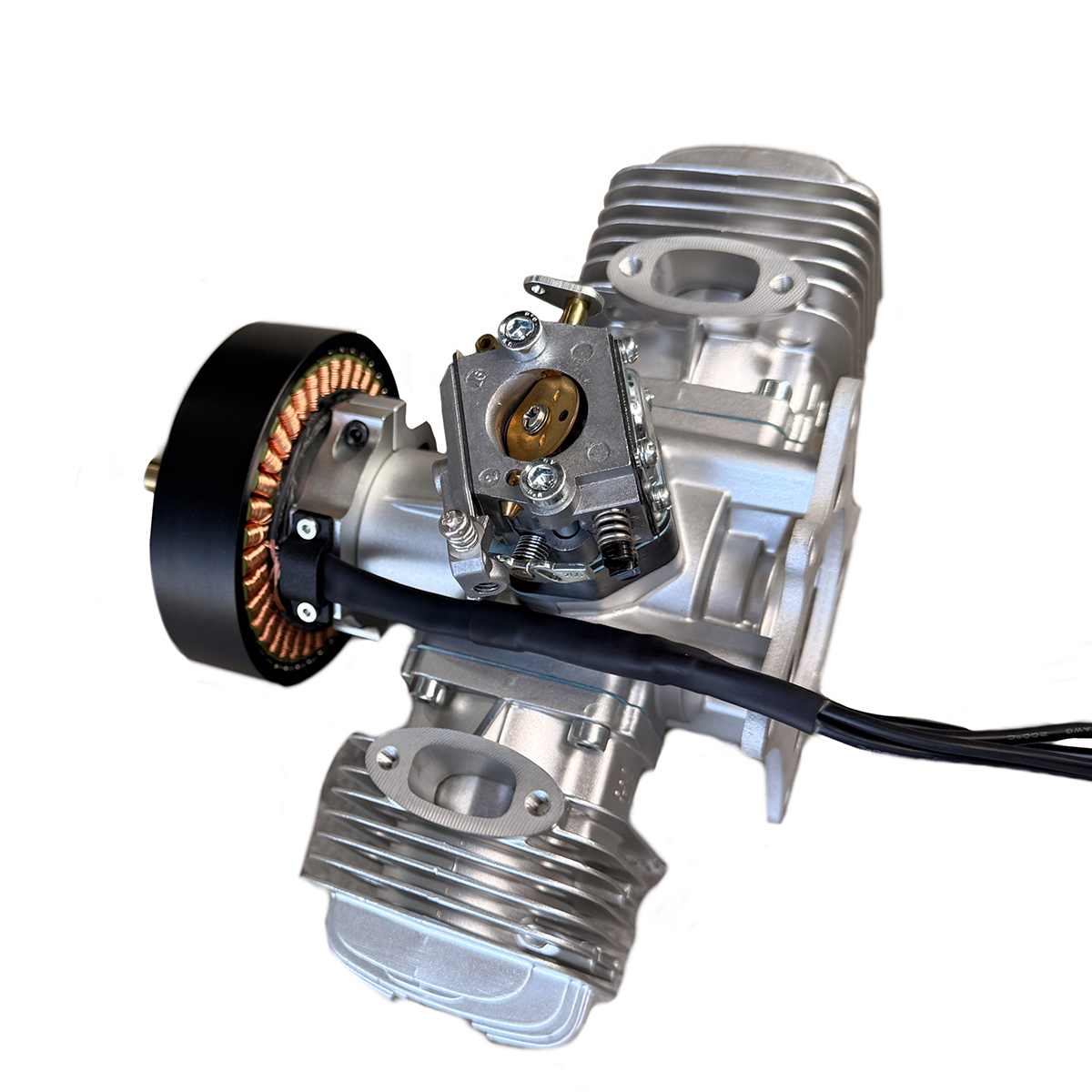

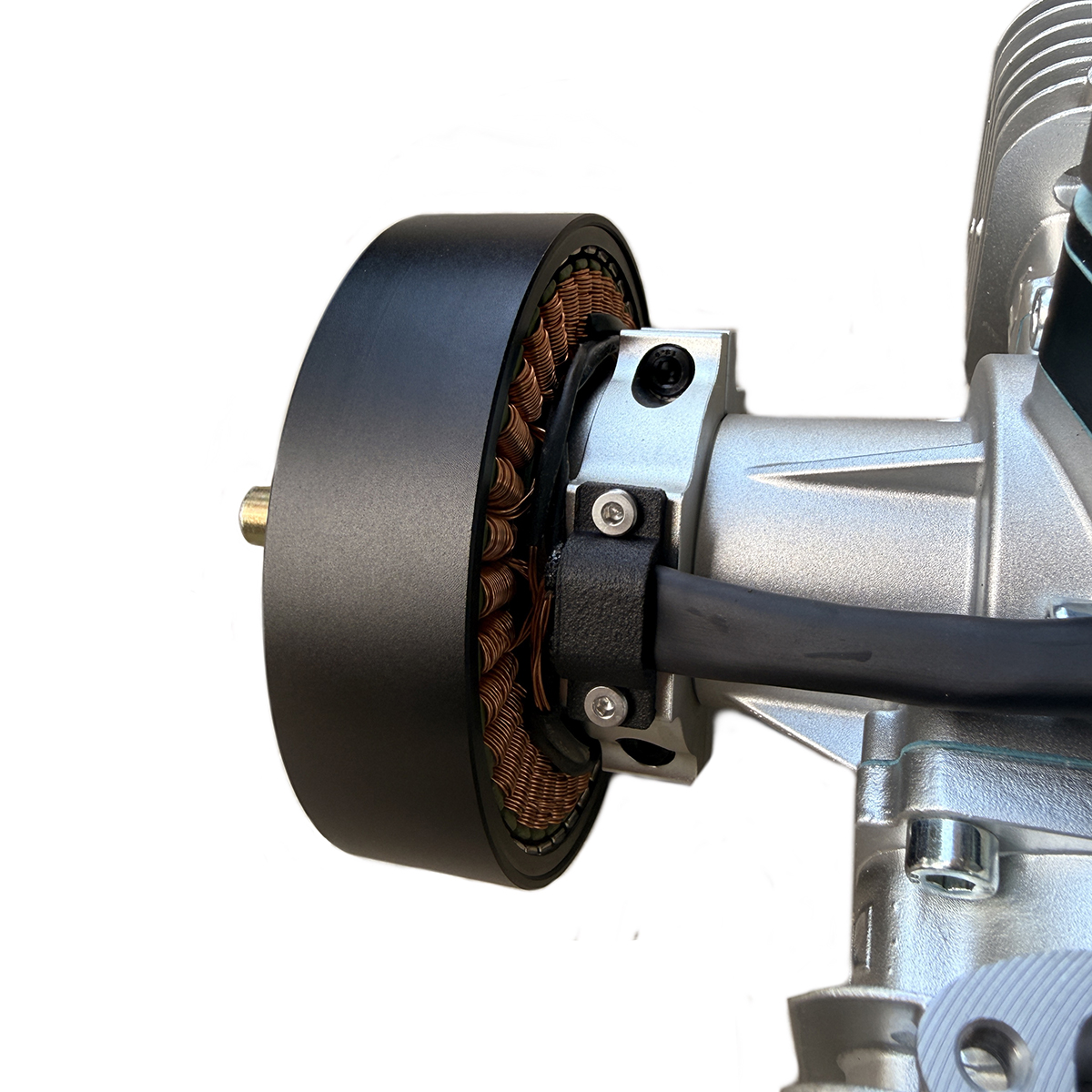

This 3 phase brushless alternator direct drives on the engine crankshaft. The stator mounts to the crankshaft casing. The rotor spins on the crankshaft.

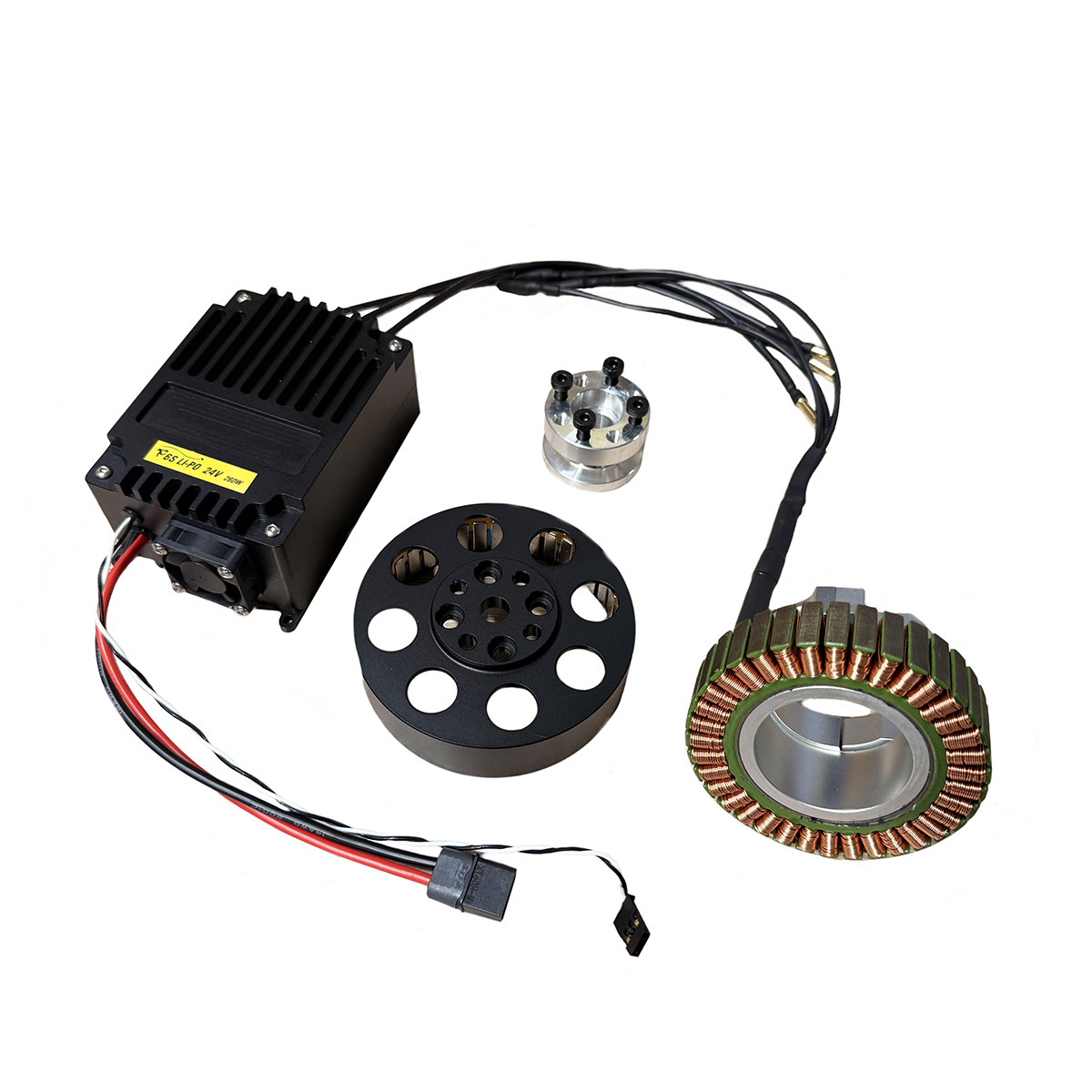

The system includes a Control Unit and Rectifier Unit. The Rectifier Unit provides 24.5 VDC at 9A max,which can meet the load requirements of various UAV tasks.

12 V option available, contact for info and pricing.

Output Power:200W Max
Output Voltage:24.5V
Alternator weight:：
Control Unit weight:：
Rectifier weight:：
