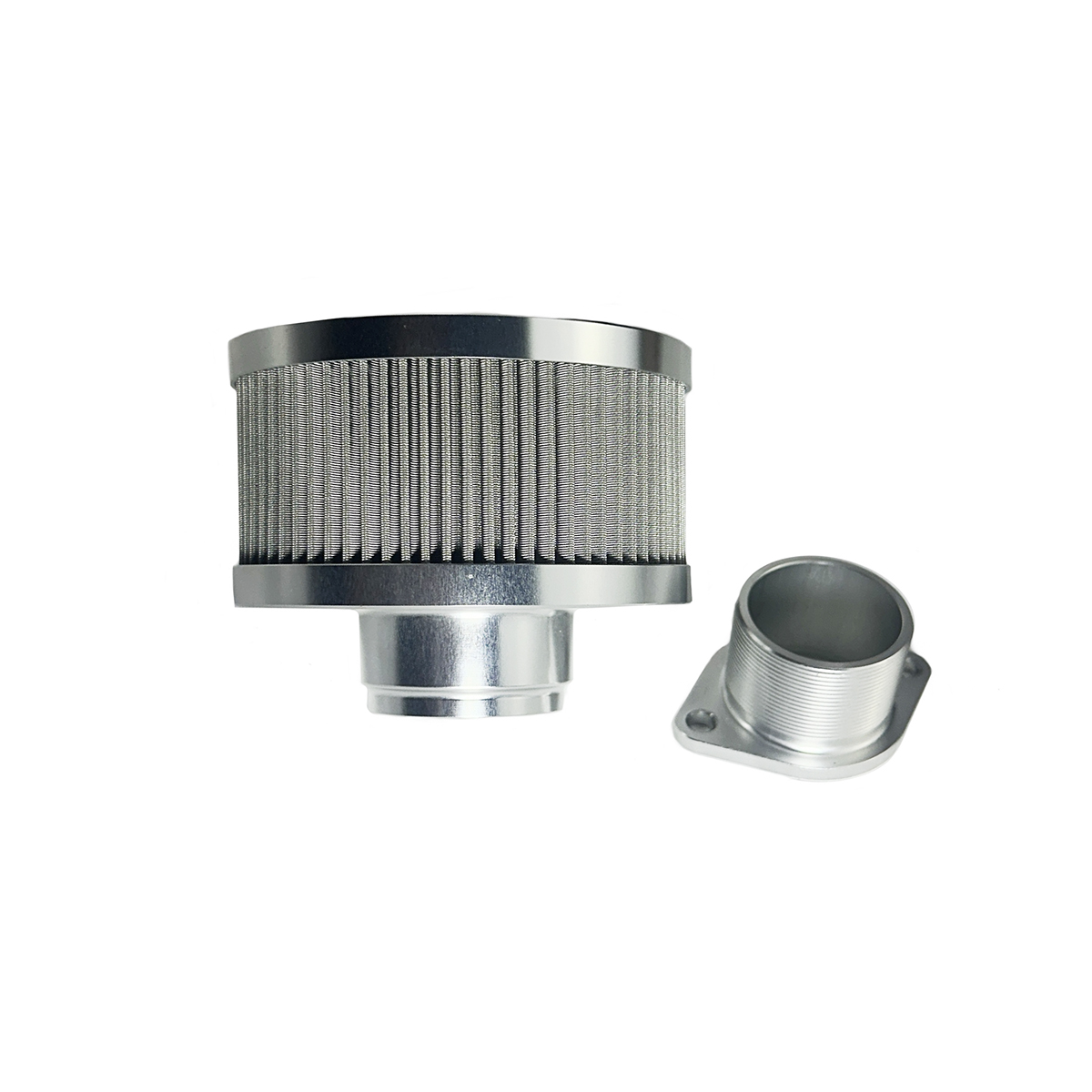

AIR FILTER FOR 130CC-215CC ENGINE

Air filter specially designed for drone engines. The filter is made of stainless steel and has low air resistance and does not affect engine power. It can isolate most of the sediment in the engine working environment, especially during the take-off stage when the fixed wing is hung up.
This air filter is specially designed to meet the needs of drones. The upper and lower end covers are made of aluminum alloy and are firmly combined. Base The thickening design of the root after harvesting eliminates the problem of easy fatigue fracture caused by high-frequency vibration of the engine.

The carburetor mounting hole spacing is 46MM, and the air filter top diameter is 65MM.

The following engine models have been tested and can be installed:

DLE130,DLE170

DA150,DA170,DA215,

Weight：100g
Diameter：82MM
Height：66MM
Filter mesh ：400
